Measurement Sensor Positioning Equipment
Surface measurement data, precisely how you need it
Our customers lean on us to add motion to their surface measurement processes. They trust us to enable measurement data that allows them to control their manufacturing processes and perform fundamental research. This allows them to make better, data-driven decisions.
Our motion solutions
Benchtop stages
For single-axis scan motion
Positioning stages (linear/rotary) and controllers for a variety of benchtop scanning needs.
Product for this device
PM-1 (Single Axis)
- Trigger sensors with position encoders
- Adjust scan motion parameters
- Plug-and-play with sensor controller
Operator-led tools
For multi-axis motion applications
Programmable tools used for R&D and small batch production measurements.
Products for this device
PM-O (Operator)
- Configurable motion travels and layout
- Operator interface for ease-of-use
- Multiple surface data output formats
Automation cells
Operates near line to your production
These cells interface with your existing production line.
Product for this device
PM-A (Automated)
- Communicates with your line
- Starts measurement and saves data
- Interfaces with part handling
Which option fits your needs the best?
Challenges we solve
Motion for 3D profilometry and thickness measurement
Configured to your measurement needs
Eliminating measurement errors caused by motion systems
Equipment specified to meet your error budget
Interfacing your measurement data with a variety of analysis software packages
Surface analysis and CAD compare
Machine design, manufacturing, and installation
Use our team as an extension of yours
Purpose-built motion tools for measurement sensors
Whether your tools are being used by researchers, operators, or loaded by a robot, our motion solutions will enable your measurement process to achieve the results you’re looking for.
We build machines that add motion to your measurement sensor(s)
- Choose from a large catalog of machinery and capabilities
- We integrate the right sensor(s) to solve your challenge
- The sensors and machinery are seamlessly coordinated
- You have full control over the data that is generated
Order a machine that is designed and built to meet your exact requirements. Your measurement needs are unique. Your measurement equipment should be too.
Have questions? Contact an expert.
Sensors we integrate
Point
Laser, interferometric, chromatic confocal point sensors. Ideal for profile measurements requiring excellent accuracy and vertical resolution.
Vision
Vision systems and cameras. Implemented for fiducial recognition, defect detection, and alignment processes.
Line
Laser and chromatic confocal line profile sensors. These are ideal for high density data collection and pair nicely with our precision linear stages.
Area
White light interferometry and fringe projection area sensors. Sense entire areas at once and stitch them together for even larger field of views.
Our machines and operator software are designed to be sensor agnostic. This enables our customers to apply the right sensor to the job every time.
Machine management and operator software
CaptureUI is a software application that enables automated scan control. At its core, CaptureUI brings sensor data acquisition and precision motion control together so that you don’t have to.

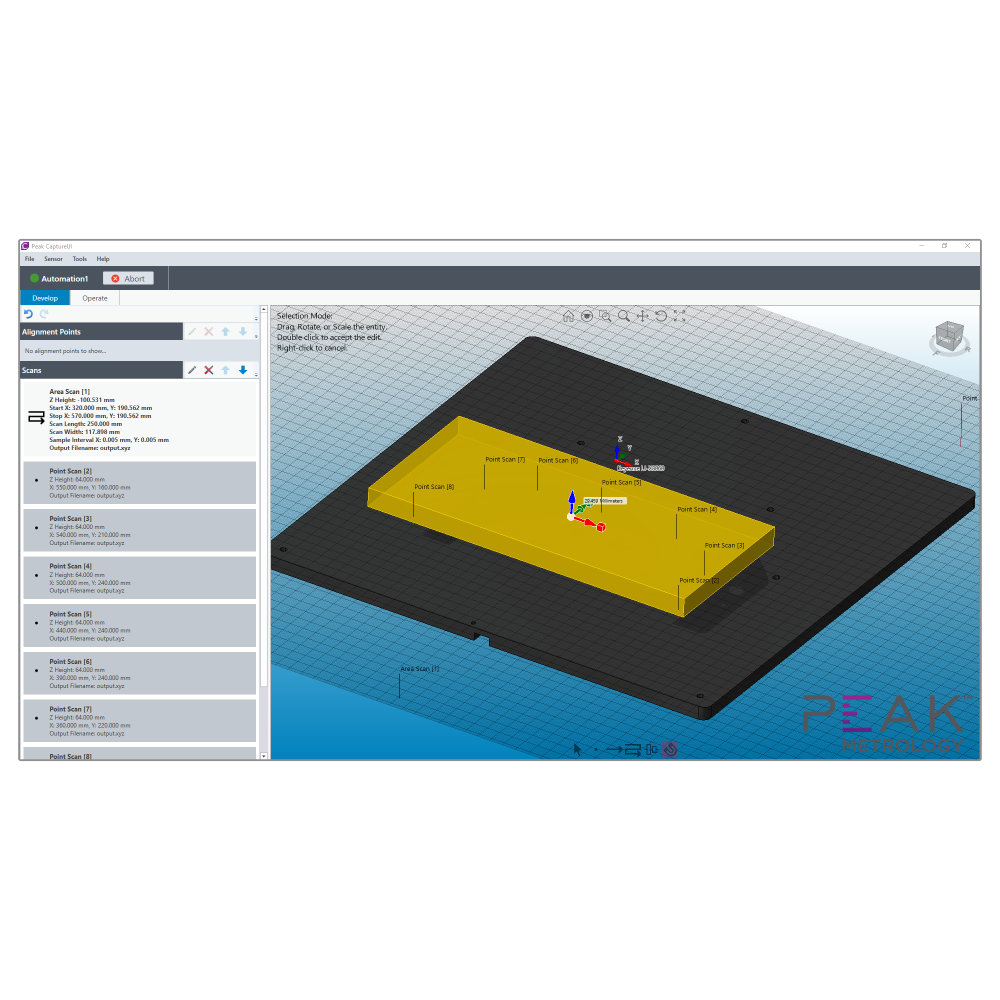

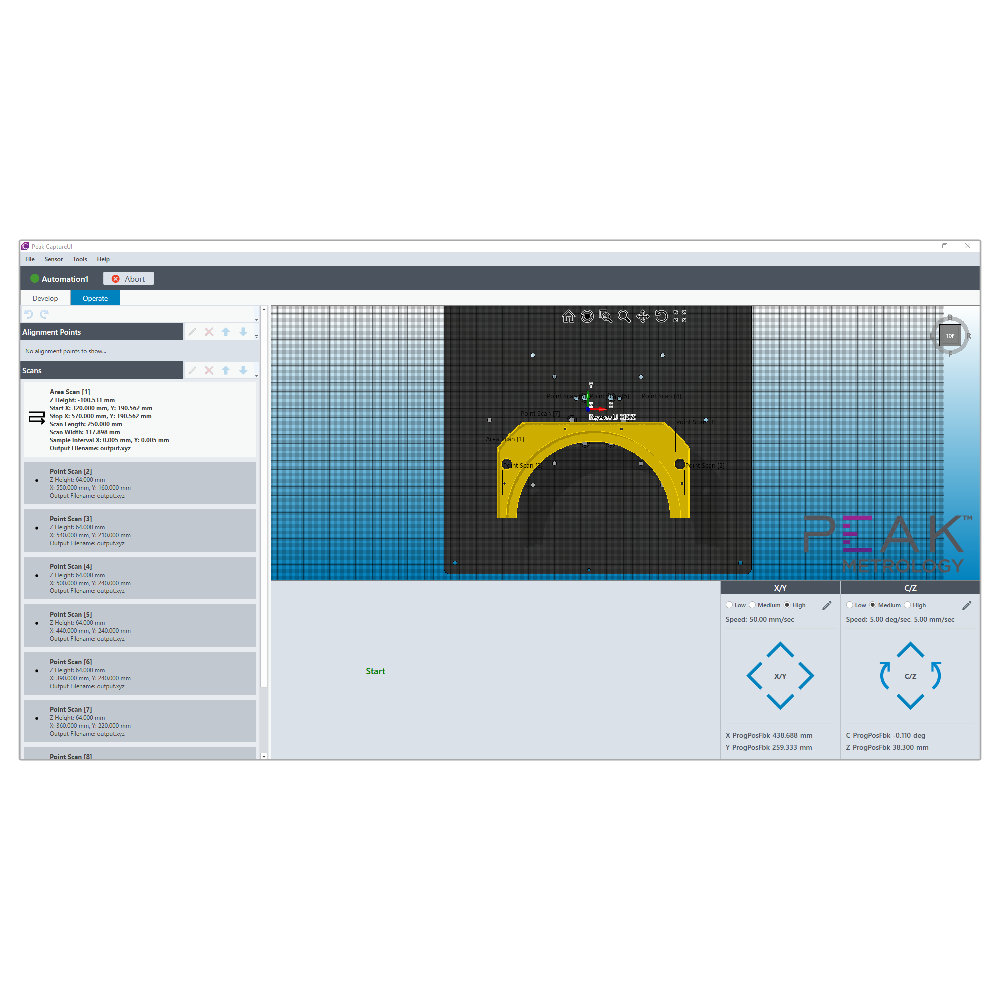

Scan planning
Use graphical tools to plan the scan path and data acquisition sequence. Save recipe files to be used over and over. Operator friendly tools.
Sensor management
Built-in sensor handling tools to make integrating a single or many sensors easy.
Machine coordination
Choose how you want the data and the machine will sync data acquisition and motorized positioning for you.
Measurement analysis
Output the scan data to many supported tools for full analysis of the results.
Example analysis tools
Showing TrueMap 6 by TrueGage
Showing Polyworks Inspector
See the equipment in action
Overview of motion for measurement sensors
Machine example: automated surface laser profiling
Working with us
Our team will walk you through the variety of options available to solve your application challenges. At each step along the way our experienced consultation is provided to make sure you receive equipment that exceeds your expectations.
Application consultation
Our team will learn about your needs, make suggestions, and test your application in our lab as necessary.
Design engineering
You will use our engineering resources as an extension of your project team. We design the equipment while pulling from our experience.
Tool manufacturing
We manufacture the tool to completion within our large production facilities. ISO certified, clean, and environmentally stable facilities.
Acceptance and installation
We prove that the equipment meets and exceeds your project's success metrics and come on-site to train your team as required.
