Enhanced Larger Stage Options for VHX Microscopes
Use additional software to get more out of your VHX microscope
Have you ever wanted to use your VHX microscope to measure larger parts, automate your process, or combine additional capabilities with the off-the-shelf Keyence unit? Well, we build large format stages and accessories that unlock more power from these already useful microscopes.
Software for automated scan control
How does it work?
An additional software interface (ScanX) is used to communicate between the VHX microscope and the motion controller. The motorized stages can be jogged from this interface and an image acquisition routine can be programmed for automated scanning.
In Partnership With
See what standard VHX features are supported
Additional Features
ScanX software unlocks features that enable more applications to be solved by the VHX microscope.
Large area stitching
ScanX enables larger area images to be stitched together when compared to the standard Keyence VHX software. ScanX includes a separate stitching routine that takes advantage of more powerful PC’s and memory allocation.
- >50k x 50k pixels can be stitched in a single image
- Various formatting and compression options
- Faster stitching times
Position list functionality

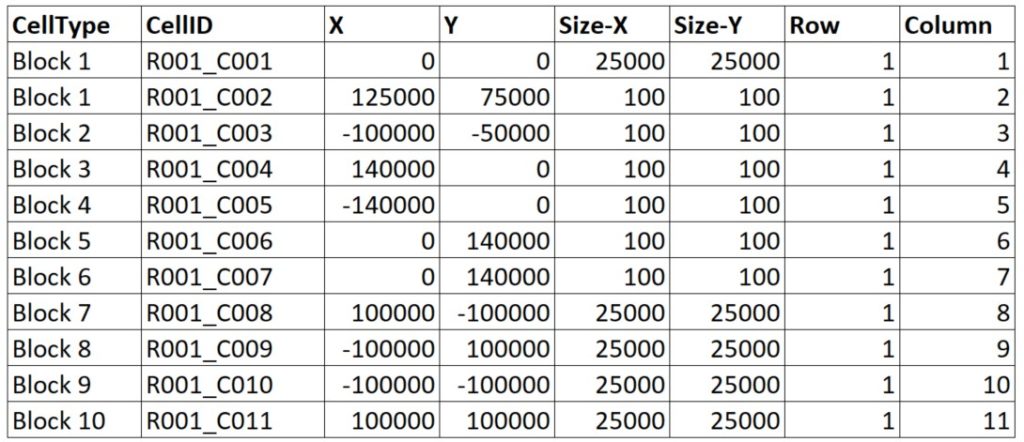

Import or create position lists from known coordinates on your part’s surface for quick navigation and automated inspection.
- Spreadsheet file format for compatibility
- Add as many individual images or stitched areas as needed
- Programmable autofocus for faster imaging
More PC power

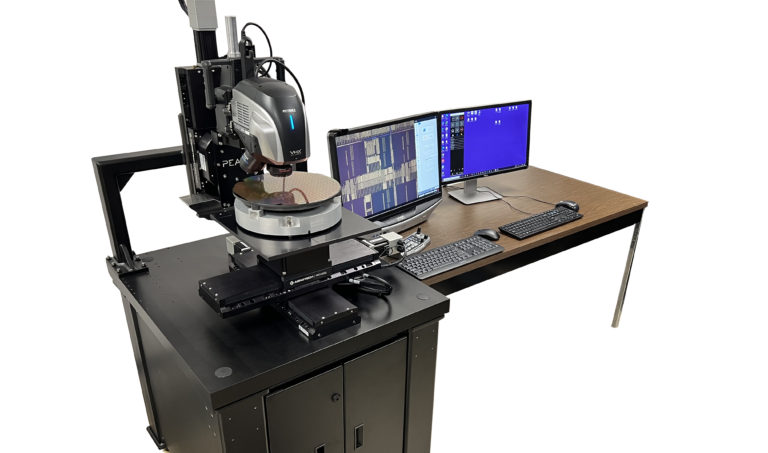

ScanX will run on the VHX controller PC, but for memory intensive applications it can be run on its own dedicated PC and monitor. This is ideal for small batch production and intensive R&D applications. A second monitor is suggested for this format.
- Larger image file sizes
- Faster image capture times
- Faster image stitching
Servo stage compatibility
Servo motor stages can be used in conjunction with ScanX software. These stages have many benefits that may make the difference in your application.
- Direct encoder feedback for better positioning accuracy
- More configuration options (travel, payload, orientation)
- Faster move and settle times for increased throughput
Motorized Tilt Stage
ScanX includes the functionality to control motorized tilt stages. These stages are used to rotate the microscope lens with respect to the surface of interest.
- Use the jog pad to tilt the microscope via an operator
- Use the position list functionality to program tilt
- Use the tilt stage encoder to read the tilt position
Demonstration of primary ScanX functions
ScanX is a software user interface that enables the VHX microscope to be used with larger travel positioning systems.
Stage positioning and jogging
Use the jog pad to move the motorized stages. XY comes standard. VT (vertical and tilt) come optional.
Position lists and teaching routines
Use tables to predefine imaging areas to be captured. Reuse the position list for repetitive measurements.
Large area stitching
Specify an image area and overlap % and ScanX will create a stitched image.
See the equipment in action
You probably want to see the equipment in operation before any purchase. Check out the videos below to give you a better idea of what the motion looks like when positioning parts and samples using our equipment.
Product overview video
Larger travel machine video
Catalog documentation
Want to learn the details behind our large format stage options for VHX microscopes driven by ScanX software? Download the PDF catalog.
- Explanation of software features
- Stage specifications and dimensions
- Ordering information and much more
